JC9000

Meet the JC9000

Heavy Duty Control Joystick

Built from 40+ years of engineering excellence in the off-highway market, the JC9000 offers extremely high mechanical strength for very heavy-duty off-highway vehicle applications and is designed with an operating life of 5-million full cycles to minimize cost of ownership.

Features & Benefits

HYDRAULIC FEEL

Built from 40+ years of engineering excellence
Seamless integration, promoting operator familiarity

OVER 100 CONFIGURATIONS!

Universal configurations unlock economies of scale for OEMs
Variable travel angles and spring forces for optimum flexibility

BUILT TO LAST

Market-leading mechanical performance
IP69K, double gaiter for tough environments

FUNCTIONAL SAFETY COMPLIANCE

Designed with Functional Safety Compliance from concept
Conforms to 2027 EN ISO 13849 to PLd

Product Information

Designed with an operating life of 5 million full cycles to minimise the cost of ownership.
The high position of the shaft pivot-point position has enabled the design to have high strength with minimal under panel depth.
Each half axis has a separate operating angle and spring force feature, so the joystick can be configured for optimum use in an operating system.
Hall-effect sensing eliminates contact wear and provides safety functionality via dual outputs which are analysed and safety checked through the on board CAN electronics.
Electronic robustness is assured with sealing of the internal PCB to a rating of IP67 including the connector.

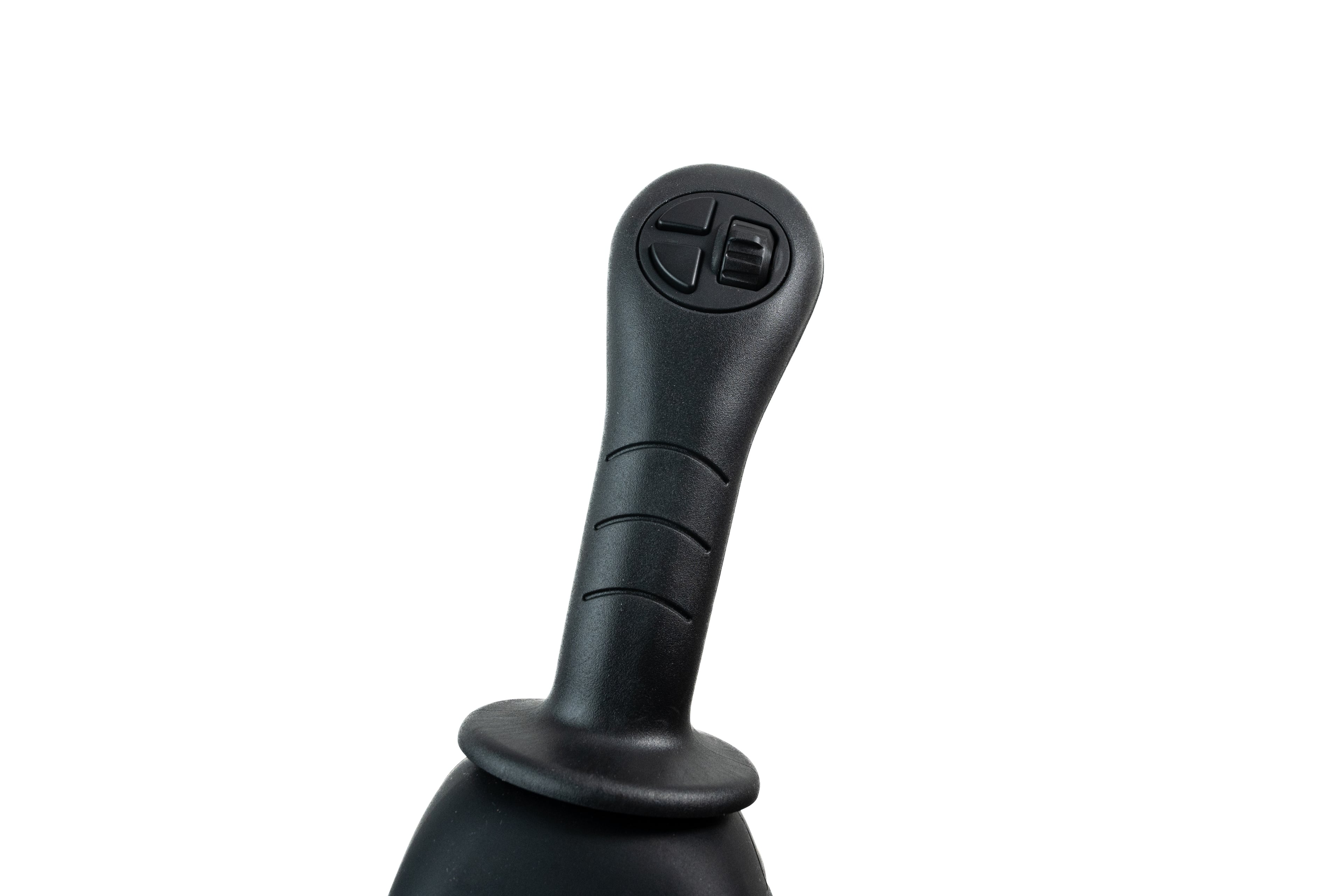

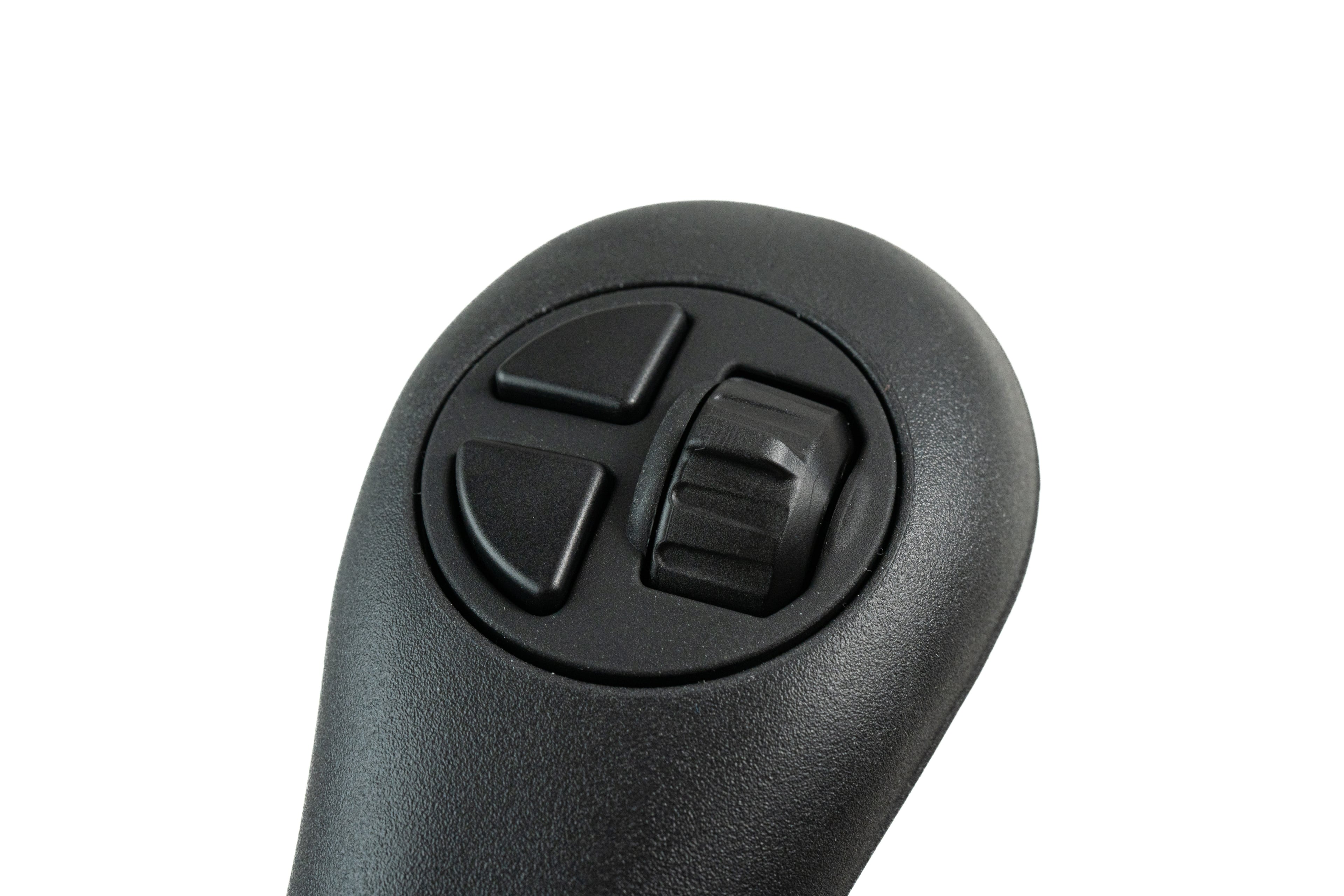

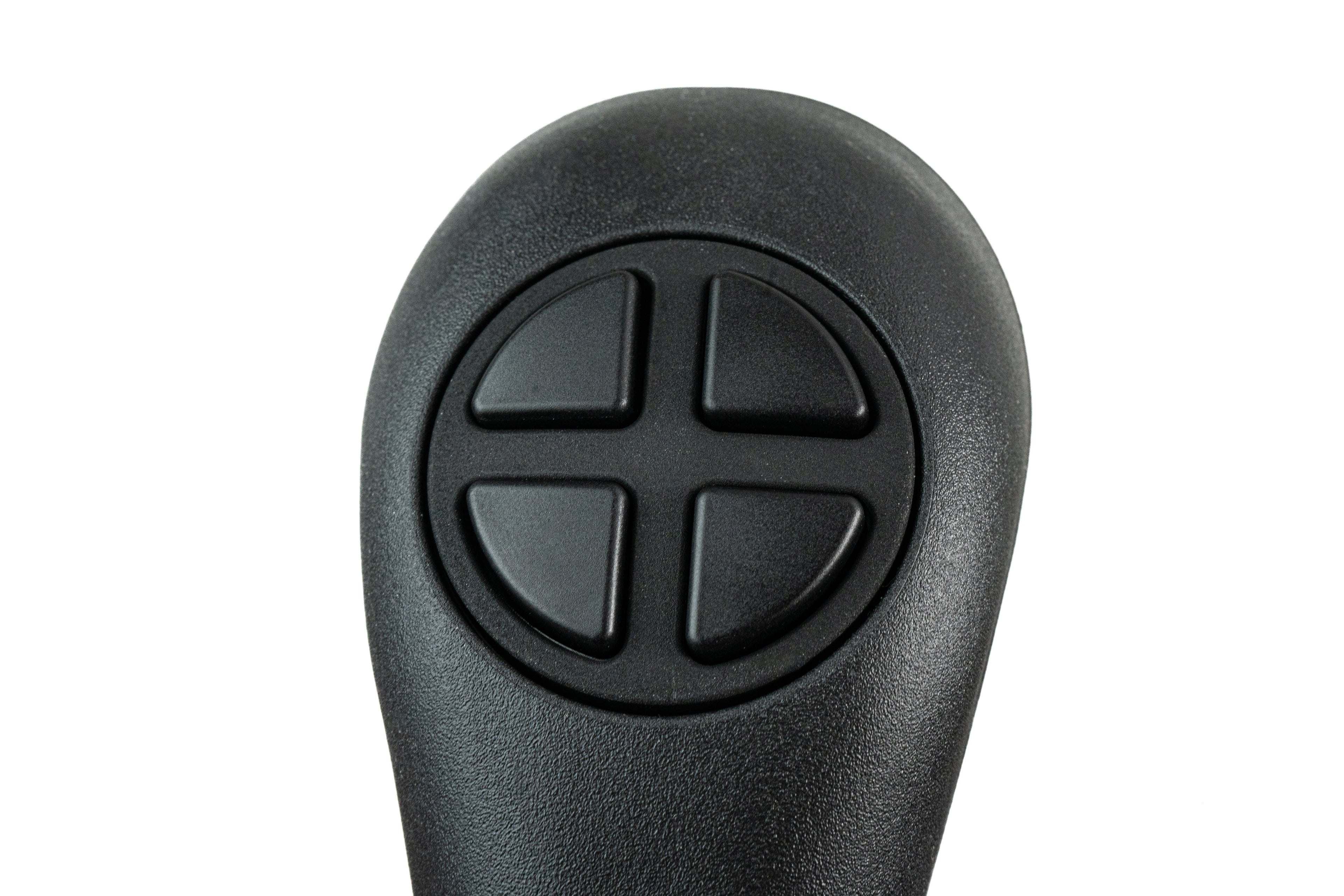

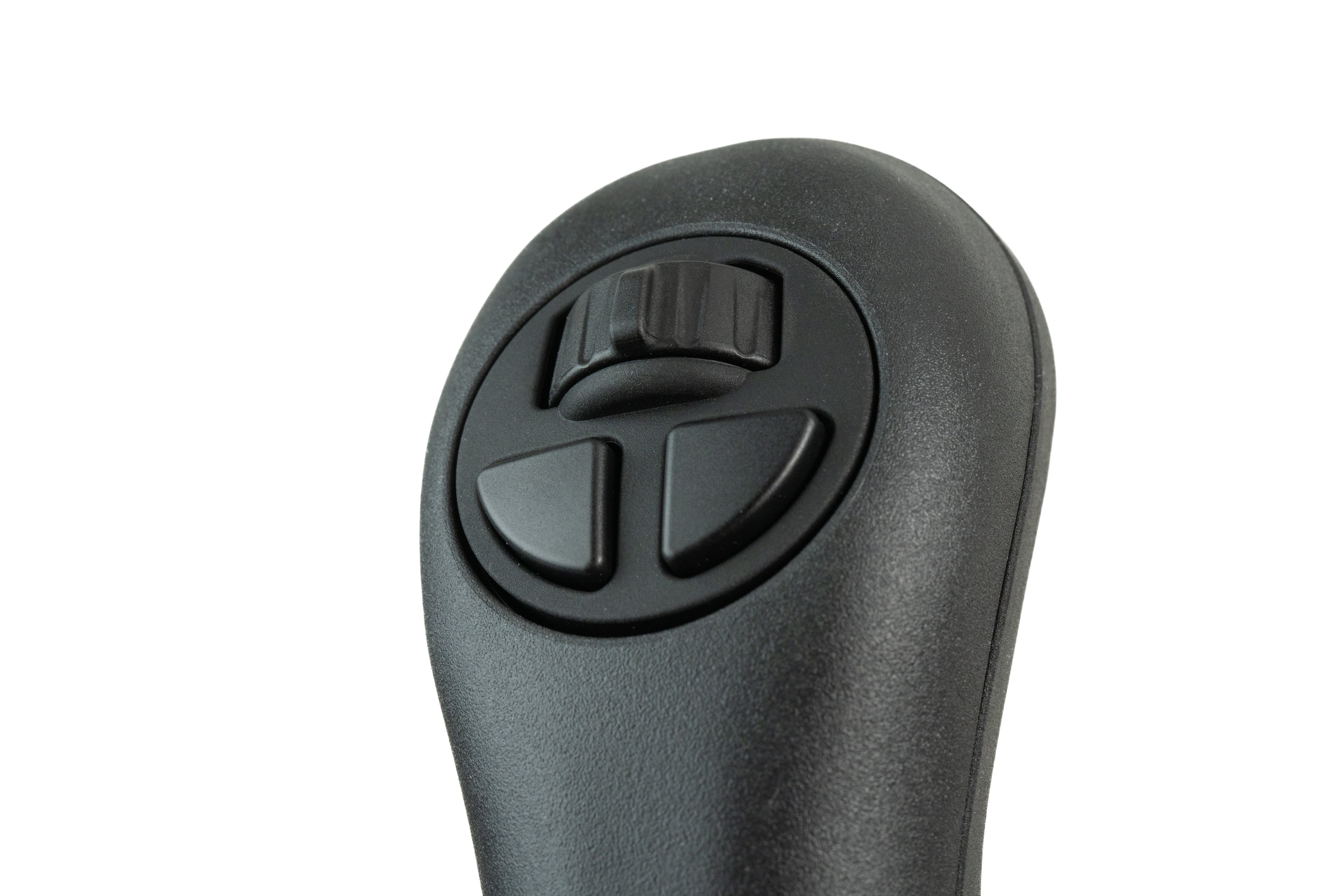

A new multi-function grip has been developed to provide flexibility of machine functions with a robust soft-touch outer coating for maximum operator comfort during extended hours of use.
The grip can be replaced if damaged or a system upgrade is required – grip connected to the base joystick through a second connector.
